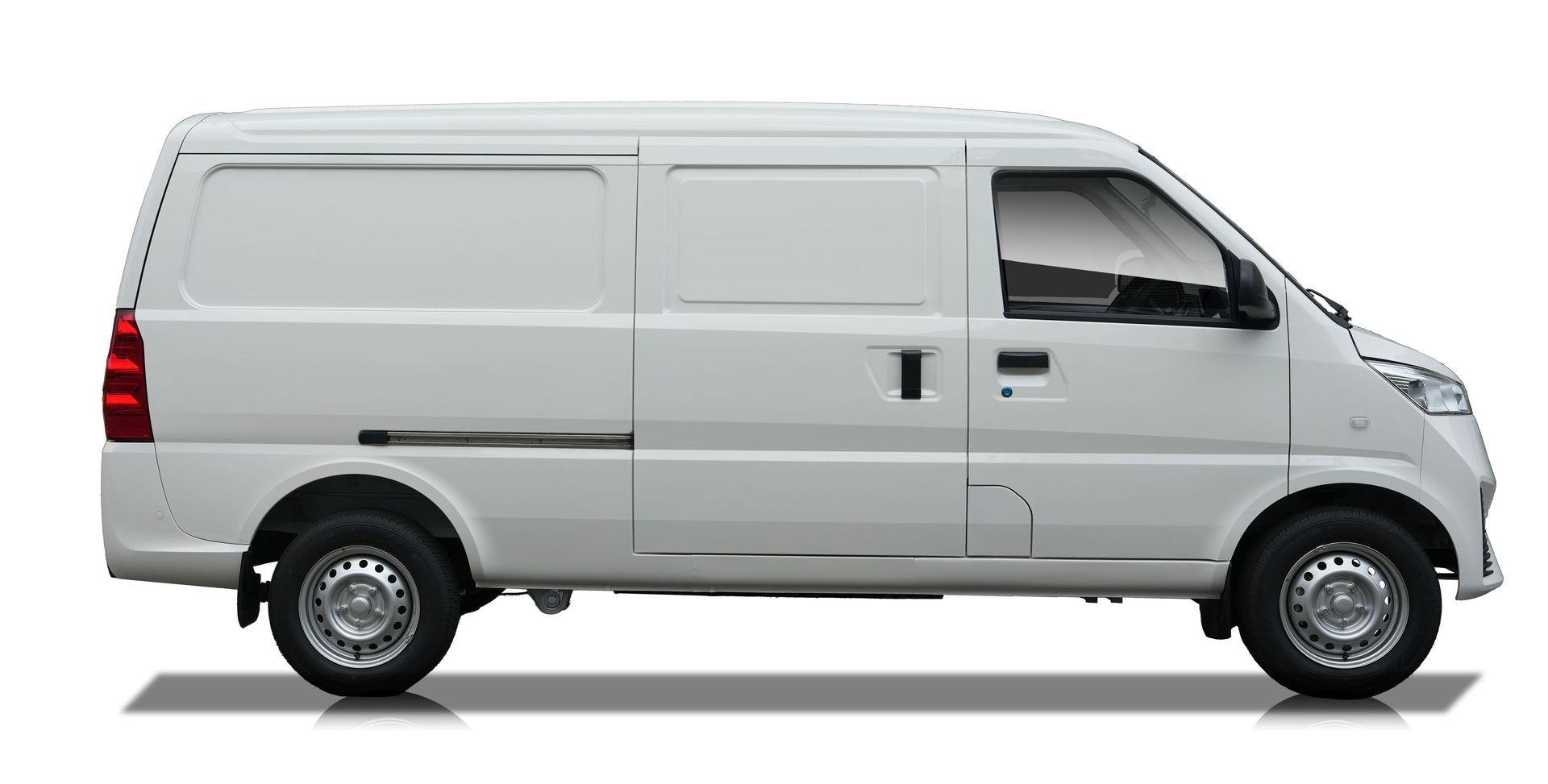

Wuling Linxys G100R Electric Van
With zero tailpipe emissions, versatility and practicality, the Wuling Linxys G100R is the van to meet all your delivery needs.
Fitted with multiple recharging options and the largest capacities available, the G100R cargo van offers the great flexibility for companies always on the go. With a WTLP cycle range of more than 270km, a fast charge of less than an hour to achieve 20-80% capacity, and a spacious loading space of 5.2m³ (~220 Redmart boxes), the G100R gives you the assurance to meet your business needs without worry.
THE VAN TO MEET YOUR DELIVERY NEEDS.
The electric Linxys G100R is conceived fully in line with the principles of a sustainable, eco-friendly future. The almost silent electric engine gives you a serene and relaxed driving experience, while boosting your bottom line through reducing the cost of fuel.
The electric commercial van revolutionizing urban logistics.
01
Industry-leading payload capacity, helping to drive your bottom-line
02
Real-world performance and reliability you can count on
03
Significant cost savings, lower lifetime costs, reducing your overhead
04
Trust in a brand that delivers reliability, practicality and innovation

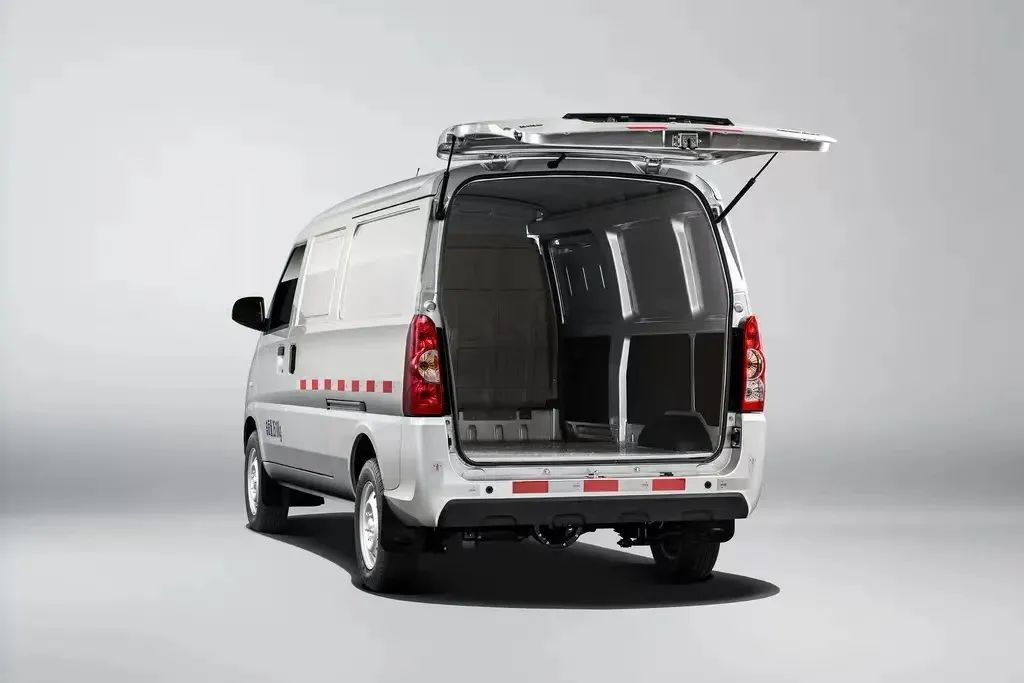

Spacious and Robust
A shield from the passenger compartment to the load compartment, the full-width partition protects the passenger compartment against the cargo, keeps dirt, dust and noises out.
With a loading space of 5.2 cubic metres, and an interior made with durable embossed aluminium, the Linxys G100R provides generous capacity for cargos.
Space-saving & Safety
Displaying its dignified elegance even at a standstill, the Linxys G100R cargo van supports your business significant cost savings and shielding your operations from rising fuel costs and disruptions in fuel supply chains.
Fitted with multiple recharging options and the largest capacities available, the G100R cargo van offers the great flexibility for companies always on the go. With a fast charge of less than an hour to achieve 20-80% capacity, powered by the advanced CATL battery, the G100R gives you the assurance to meet your business needs without worry.
Special Features
The Linxys G100R cargo van interior strikes an excellent balance between function and comfort.
The clean dashboard design features a sleek digital display, while the supportive grey fabric seats and ergonomic controls create an inviting driver's space.
The thoughtful layout and quality materials make it an ideal workplace on wheels.
Specifications
Dimension:
Overall dim (LWH): 4525×1610×1900 mm
Container size: 2512×1457×1340 mm 2688×1440×1326 mm
Wheel base: 3050 mm
Front/Rear Tread: 1386/1408 mm
Weight:
Curb weight: 1390kg
Gross weight: 2510kg
Rated load mass: 1120kg
Power battery:
Battery capacity: 41.86kW·h
Charging time: 30 min (SOC30%-80%, 25°C)
Maximum range: >280 km
Battery type: Lithium iron phosphate (CATL)
Driving Motor:
Rated voltage: 334.88V
Rated/Peak power: 30/60kw
Maximum power: 90/220N·m
Rated voltage: 336V
Pass parameter:
Minimum ground clearance: 125mm
Front/Rear suspension: 545/895mm
Approach/Departure angle: 34°/25°
Minimum turning diameter: 11.9m
Driving system:
Front Suspension: Spiral spring McPherson type independent suspension
Rear Suspension: Left spring non-independent suspension
Tires specification/FR: 175/70R14C
Braking system:
Type: Double circuit X type hydraulic brake
Brake: Front disk rear drum
Parking brake: Mechanical cable type applied to rear wheel brake
Chassis and brake system:
Front McPherson independent suspension
Rear leaf spring non-independent suspension
Front disc and rear drum hydraulic brake
Electronic Stablility Control
Rear axle:
Main Reducer: Two stage cylindrical gear speed ratio of 8.952
Differential mechanism: Straight planet bevel gear
